Artificial Board Short Cycle Press Automatic Line
This production line includes: double-sides glue spreader, dish conveyor, surface board stacker, belt loading conveyor, hot press, belt unloading conveyor and electric control carbinet.
We can manufacture the line according to ustomer's requirements. Such as: add lifting table, dirt cleaning.

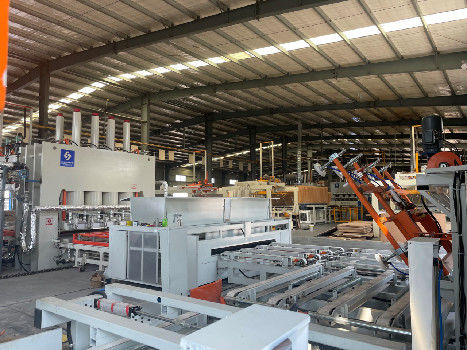

These photos are from one of our customer's factory:
Specification
Product standard parameters requirements
● Plate Parameters
| Item | Parameters | Unit |
| Length×Width |
1220×2440(4×8), 1270×2470(4×8), 1220×2800(4×9), 1220×3050(4×10), 1525×2440(5×8), 1830×2440(6×8), 1525×2800(5×9), 1830×2800(6×9), 1525×3050(5×10) |
mm |
| Thickness | 8-30 | mm |
| Substrate height | 1300 | mm |
| Finished board height | 1300 | mm |
● Medium fiberboard (MDF), particleboard (PB), and OSB boards used for veneer should have the following technical properties:
| Density | 600-900kg/㎡ |
| Moisture content | ≦8 |
| Quality of the Surface | Dense surface layer, non-porous, fine sand surface |
| Thickness tolerance | Max.:±0.15mm |
| Density distribution | Evenly distributed |
● Requirements for Decorative paper (impregnated paper)
| Size | Must be more than 10mm larger than the original board size |
| Weight of the thick paper | 60-130 g/㎡ |
| Glue amount | Max.150 |
| Volatile Matter | 5.5-7 |
|
|
