| Brand Name: | Yaoyong |
| MOQ: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Wooden case packing |
| Payment Terms: | T/T, PayPal, Western Union |

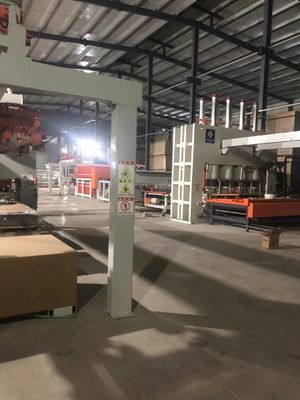

Artificial Board Short Cycle Press Automatic Line
Description
The machine is adopted stronger frame body, 1200-2800Tons used for different process required. This model widely used in MDF/PB(chip board) and some furniture Plywood laminated with melamine paper. 4*6/4*8/4*9/5*8/6*8/6*9/5*10 feet board size on options.
Artificial Board Short Cycle Press Automatic Line I Type Automatic Line
Widely used in short-cycle artificial board pressing production lines, suitable for particleboard, medium-density fiberboard, and melamine impregnated paper.
Evenly cool the board to reduce deformation caused by temperature difference, thereby shortening the delivery cycle.
After adding a printer, it can be used as a finished board printing line.
Other customized functions can also be added, such as board weighing, sub-packaging, full packaging, etc.
Specification
| Floor area (length) | About 35m |
| Floor area (width) | About 10m |
| Total floor area | About 331.98m2 |
| Voltage requirements | Default 380v+15% 50hz |
| Building height requirements | ≥6m |
| Gas source requirements | 0.6-0.8 Mpa pressure flow ≥200L/min |
| Gas source gas consumption | Peak 400L/min |
| Installed power | 20 KW |
| Production plate production capacity | 80 sheets/hour |
| Applicable plate specifications | 4X8, 4X9, 4X10 (other sizes can be customized) |
| Press plate replacement method | Side shift/backward shift (or other customized on demand) |
| Substrate height before entering the press | Customized on demand |
| Substrate height after exiting the press | 700-800 |
| Number of loading stations | Standard 1, can be customized to increase |
| Number of unloading stations | Standard 1, can be customized to increase |
| Substrate thickness | 6-35mm |
Applications
1. Complete board loading device, customers only need to transport the board to the designated location to automatically start operation, no manual operation is required. 2. The board loading and unloading are automatically sucked out by suction cups, which prevents the dangers caused by manual unloading and secondary damage to the board surface, effectively protects the surface from scratches, and reduces the scrap rate.
3. A printer can be installed in the conveyor rack.
4. A fan is installed under the drying line to accelerate the cooling of the board and blow away the floating dust.
5. The board is brushed again after it comes out of the drying line to ensure a clean surface.
6. Automatic stacking is fast and efficient, and can be stacked at multiple stations.
Competitive Advantage
1. The automatic line requires less manpower, is more intelligent and automated.
2. The product functions are mature and the experience is rich.
3. The price is economical and the quality is guaranteed.
4. It has high-tech patents: customized servo system drive, electrostatic adsorption, integrated inlet and outlet plate mechanism and a series of technologies, full-size CNC machining of presses, synchronous lever system, etc.
5. The line can be disassembled and transported conveniently.
6. It can be customized according to customers to adapt to different factory areas.
7. Remotely modify the control program, quickly solve problems, and worry-free after-sales.
|
|
