Artificial Board Short Cycle Press Automatic Line

Description

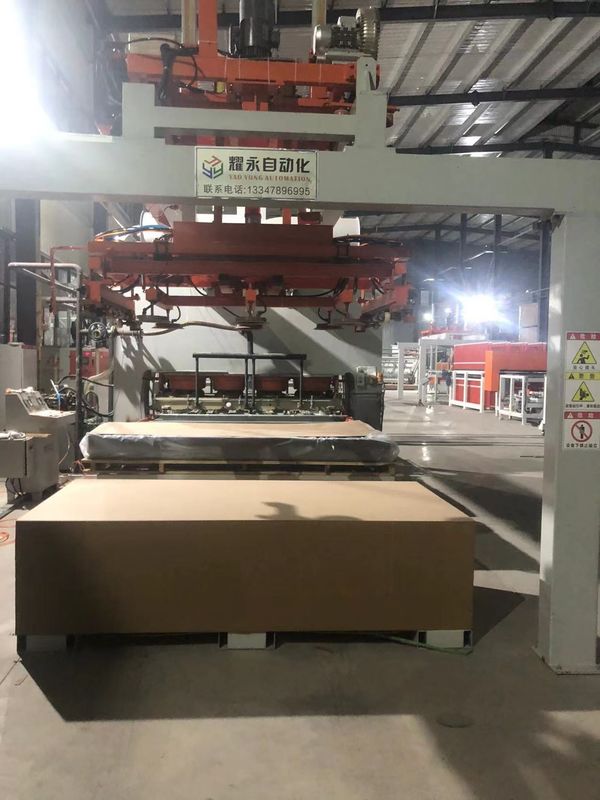

The single layer veneer press line is designed for particleboard and MDF lamination on the short-cycle principle. In this process decorative papers (impregnated with melamine and urea resins) are bonded to a raw board; they are laid on hard-plated press cauls adn cushions and subjected to pressure and temperature.
The Short Cycle Press Line is used for the short-cycle veneer lamination of the man-made panels
as base material, such as particle board or MDF, with melamine decorative paper. The optimum lamination quality of various types of panels is ensured by its precise pressure regulation and sensitive temperature control system.


Artificial Board Short Cycle Press Automatic Line I Type Automatic Line

Widely used in short-cycle artificial board pressing production lines, suitable for particleboard, medium-density fiberboard, and melamine impregnated paper.
Evenly cool the board to reduce deformation caused by temperature difference, thereby shortening the delivery cycle.
After adding a printer, it can be used as a finished board printing line.
Other customized functions can also be added, such as board weighing, sub-packaging, full packaging, etc.

Specification

Applications

1. Complete board loading device, customers only need to transport the board to the designated location to automatically start operation, no manual operation is required.
2. The production line is equipped with a board dust removal device. Removing the dust on the surface of the density board before pressing can greatly improve the quality of the product.
3. The board is automatically sucked out by a suction cup, which prevents the dangers of manual board discharge and secondary damage to the surface of the board, effectively protects the surface from scratches, and reduces the scrap rate.
4. Automatic scraping is adopted, and the scraped paper scraps can be collected and processed centrally. Keep the environment clean.
5. The finished board pressed out can be inspected by the flipping machine as needed. Workers do not need to lift the board manually, which reduces the work intensity and protects the safety of workers. The flipping machine can choose not to flip, half flip, or full flip as needed.
6. Automatic stacking is fast and efficient, and can be stacked at multiple stations.
7. Add a drying line to evenly cool the finished board and reduce deformation.

Competitive Advantage

1. The automatic line requires less manpower, is more intelligent and automated.
2. The product functions are mature and the experience is rich.
3. The price is economical and the quality is guaranteed.
4. It has high-tech patents: customized servo system drive, electrostatic adsorption, integrated inlet and outlet plate mechanism and a series of technologies, full-size CNC machining of presses, synchronous lever system, etc.
5. The line can be disassembled and transported conveniently.
6. It can be customized according to customers to adapt to different factory areas.
7. Remotely modify the control program, quickly solve problems, and worry-free after-sales.
