| Brand Name: | Yaoyong |
| MOQ: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Wooden case packing |
| Payment Terms: | T/T, PayPal, Western Union |

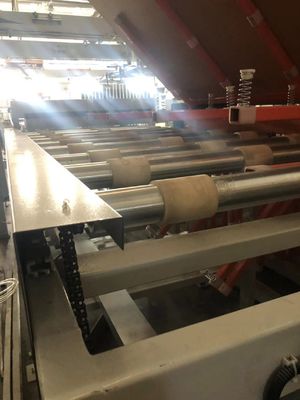

Artificial Board Short Cycle Press Automatic Line
Description
The Impregnation line is for gluing melamine on the decorative paper to make the melamine paper.
Paper Impregnation line is used for decorative paper with Urea or Phenol or Melamine resins.
Such impregnated paper is used for making laminates or in pre-lamination of particle boards overlaying.
Artificial Board Short Cycle Press Automatic Line I Type Automatic Line
Widely used in short-cycle artificial board pressing production lines, suitable for particleboard, medium-density fiberboard, and melamine impregnated paper.
Evenly cool the board to reduce deformation caused by temperature difference, thereby shortening the delivery cycle.
After adding a printer, it can be used as a finished board printing line.
Other customized functions can also be added, such as board weighing, sub-packaging, full packaging, etc.
Specification
| Floor area (length) | About 16m |
| Floor area (width) | About 6.3m |
| Total floor area | About 100m2 |
| Voltage requirements | Default 380v+15% 50hz |
| Building height requirements | ≥6m |
| Gas source requirements | 0.6-0.8 Mpa pressure flow ≥200L/min |
| Gas source gas consumption | Peak 400L/min |
| Installed power | 20 KW |
| Production plate production capacity | 80 sheets/hour |
| Applicable plate specifications | 4X8, 4X9, 4X10 (other sizes can be customized) |
| Press plate replacement method | Side shift/backward shift (or other customized on demand) |
| Substrate height before entering the press | Customized on demand |
| Substrate height after exiting the press | 700-800 |
| Number of loading stations | Standard 1, can be customized to increase |
| Number of unloading stations | Standard 1, can be customized to increase |
| Substrate thickness | 6-35mm |
Applications
1. Complete board loading device, customers only need to transport the board to the designated location to automatically start operation, no manual operation is required.
2. The production line is equipped with a board dust removal device. Removing the dust on the surface of the density board before pressing can greatly improve the quality of the product.
3. The board is automatically sucked out by a suction cup, which prevents the dangers of manual board discharge and secondary damage to the surface of the board, effectively protects the surface from scratches, and reduces the scrap rate.
4. Automatic scraping is adopted, and the scraped paper scraps can be collected and processed centrally. Keep the environment clean.
5. The finished board pressed out can be inspected by the flipping machine as needed. Workers do not need to lift the board manually, which reduces the work intensity and protects the safety of workers. The flipping machine can choose not to flip, half flip, or full flip as needed.
6. Automatic stacking is fast and efficient, and can be stacked at multiple stations.
7. Add a drying line to evenly cool the finished board and reduce deformation.
Competitive Advantage
1. The automatic line requires less manpower, is more intelligent and automated.
2. The product functions are mature and the experience is rich.
3. The price is economical and the quality is guaranteed.
4. It has high-tech patents: customized servo system drive, electrostatic adsorption, integrated inlet and outlet plate mechanism and a series of technologies, full-size CNC machining of presses, synchronous lever system, etc.
5. The line can be disassembled and transported conveniently.
6. It can be customized according to customers to adapt to different factory areas.
7. Remotely modify the control program, quickly solve problems, and worry-free after-sales.
|
|
