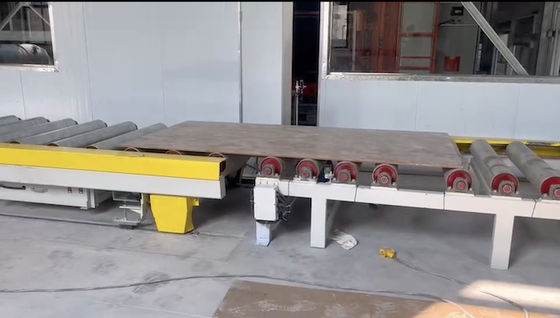

Artificial Board Short Cycle Press Automatic Line
Description
Traditional double side short cycle hot press is widely used for MDF/ Particle board melamine paper laminated, it is the important part in furniture board, floor board, cabinet board producing. The short cycle hot press can be equipped with several kinds of stainless steel plate for high-glossy, matte, S.F., embossing pattern's pressing lamination. Regarding laminated flooring press machine, pressure range: 1400T-3200T, we can design working size and specification according to your different board size. The short cycle hot press is famous for its fast pressing speed, high efficiency, and labor saving. Standard double side short cycle hot press is equipped auto feeder conveyor, which is convenient for worker's operating.
Artificial Board Short Cycle Press Automatic Line
Widely used in short-cycle artificial board pressing production lines, suitable for particleboard, medium-density fiberboard, and melamine impregnated paper.
Evenly cool the board to reduce deformation caused by temperature difference, thereby shortening the delivery cycle.
After adding a printer, it can be used as a finished board printing line.
Other customized functions can also be added, such as board weighing, sub-packaging, full packaging, etc.
Specification
| Floor area (length) | About 17m |
| Floor area (width) | About 10m |
| Total floor area | About 172m2 |
| Voltage requirements | Default 380v+15% 50hz |
| Building height requirements | ≥6m |
| Gas source requirements | 0.6-0.8 Mpa pressure flow ≥200L/min |
| Gas source gas consumption | Peak 400L/min |
| Installed power | 20 KW |
| Production plate production capacity | 80 sheets/hour |
| Applicable plate specifications | 4X8, 4X9, 4X10 (other sizes can be customized) |
| Press plate replacement method | Side shift/backward shift (or other customized on demand) |
| Substrate height before entering the press | Customized on demand |
| Substrate height after exiting the press | 700-800 |
| Number of loading stations | Standard 1, can be customized to increase |
| Number of unloading stations | Standard 1, can be customized to increase |
| Substrate thickness | 6-35mm |
Applications
1. Complete board loading device, customers only need to transport the board to the designated location to automatically start operation, no manual operation is required.
2. The production line is equipped with a board dust removal device. Removing the dust on the surface of the density board before pressing can greatly improve the quality of the product.
3. The board is automatically sucked out by a suction cup, which prevents the dangers of manual board discharge and secondary damage to the surface of the board, effectively protects the surface from scratches, and reduces the scrap rate.
4. Automatic scraping is adopted, and the scraped paper scraps can be collected and processed centrally. Keep the environment clean.
5. The finished board pressed out can be inspected by the flipping machine as needed. Workers do not need to lift the board manually, which reduces the work intensity and protects the safety of workers. The flipping machine can choose not to flip, half flip, or full flip as needed.
6. Automatic stacking is fast and efficient, and can be stacked at multiple stations.
7. Add a drying line to evenly cool the finished board and reduce deformation.
Competitive Advantage
1. The automatic line requires less manpower, is more intelligent and automated.
2. The product functions are mature and the experience is rich.
3. The price is economical and the quality is guaranteed.
4. It has high-tech patents: customized servo system drive, electrostatic adsorption, integrated inlet and outlet plate mechanism and a series of technologies, full-size CNC machining of presses, synchronous lever system, etc.
5. The line can be disassembled and transported conveniently.
6. It can be customized according to customers to adapt to different factory areas.
7. Remotely modify the control program, quickly solve problems, and worry-free after-sales.
|
|
