Artificial Board Short Cycle Press Automatic Line

Description

Short-cycle presses may be used for two purposes: the production of boards for furniture and boards for laminate flooring. Both applications employ the same principle of functioning, only the type and scope of the components used varies.

A high-quality finish is expected on both sides of the boards used to make furniture. The boards are usually sold as boards that have been cut to size. Customers expect a very high quality.
Boards used for laminate flooring are cut at the factory and the board edges are prepared for the intended use.
An embossing plate may be used on boards used for both applications to create the feel of genuine wood. This plate may be used to emboss a pattern in the surface that matches the printed design (embossed in register = EIR).

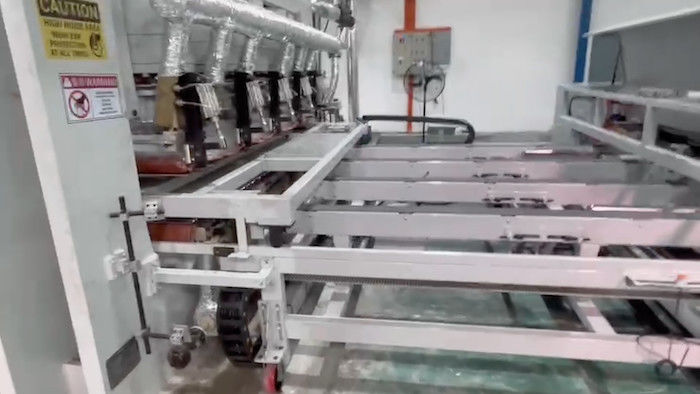

Artificial Board Short Cycle Press Automatic Line I Type Automatic Line---YLU

Widely used in short-cycle artificial board pressing production lines, suitable for particleboard, medium-density fiberboard, and melamine impregnated paper.
Evenly cool the board to reduce deformation caused by temperature difference, thereby shortening the delivery cycle.
After adding a printer, it can be used as a finished board printing line.
Other customized functions can also be added, such as board weighing, sub-packaging, full packaging, etc.

Specification

Applications

1. Complete board loading device, customers only need to transport the board to the designated location to automatically start operation, no manual operation is required.
2. The production line is equipped with a board dust removal device. Removing the dust on the surface of the density board before pressing can greatly improve the quality of the product.
3. The board is automatically sucked out by a suction cup, which prevents the dangers of manual board discharge and secondary damage to the surface of the board, effectively protects the surface from scratches, and reduces the scrap rate.
4. Automatic scraping is adopted, and the scraped paper scraps can be collected and processed centrally. Keep the environment clean.
5. The finished board pressed out can be inspected by the flipping machine as needed. Workers do not need to lift the board manually, which reduces the work intensity and protects the safety of workers. The flipping machine can choose not to flip, half flip, or full flip as needed.
6. Automatic stacking is fast and efficient, and can be stacked at multiple stations.
7. Add a drying line to evenly cool the finished board and reduce deformation.

Competitive Advantage

1. The automatic line requires less manpower, is more intelligent and automated.
2. The product functions are mature and the experience is rich.
3. The price is economical and the quality is guaranteed.
4. It has high-tech patents: customized servo system drive, electrostatic adsorption, integrated inlet and outlet plate mechanism and a series of technologies, full-size CNC machining of presses, synchronous lever system, etc.
5. The line can be disassembled and transported conveniently.
6. It can be customized according to customers to adapt to different factory areas.
7. Remotely modify the control program, quickly solve problems, and worry-free after-sales.
