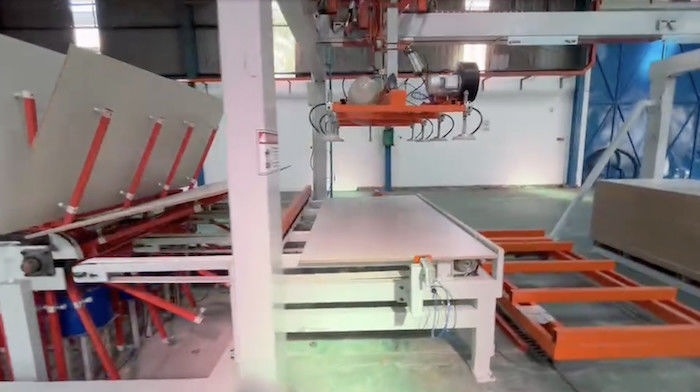

Artificial Board Short Cycle Press Automatic Line
The short cycle press line works by pressing together multiple layers of material with a hot-press machine. The machine uses heat and pressure to bond the layers of material together, creating a strong and durable final product. The cycle time for this process is typically shorter than that of traditional long-cycle presses, which allows for higher production rates and lower costs.
The benefits of using a short cycle press line include increased productivity, reduced production costs, and improved quality control. Because the cycle time is shorter, more products can be produced in a shorter amount of time, leading to increased productivity. Additionally, because the process is more automated, there is less room for error, resulting in a higher-quality final product.
Specification
Product standard parameters requirements
● Plate Parameters
| Item | Parameters | Unit |
| Length×Width |
1220×2440(4×8), 1270×2470(4×8), 1220×2800(4×9), 1220×3050(4×10), 1525×2440(5×8), 1830×2440(6×8), 1525×2800(5×9), 1830×2800(6×9), 1525×3050(5×10) |
mm |
| Thickness | 8-30 | mm |
| Substrate height | 1300 | mm |
| Finished board height | 1300 | mm |
● Medium fiberboard (MDF), particleboard (PB), and OSB boards used for veneer should have the following technical properties:
| Density | 600-900kg/㎡ |
| Moisture content | ≦8 |
| Quality of the Surface | Dense surface layer, non-porous, fine sand surface |
| Thickness tolerance | Max.:±0.15mm |
| Density distribution | Evenly distributed |
● Requirements for Decorative paper (impregnated paper)
| Size | Must be more than 10mm larger than the original board size |
| Weight of the thick paper | 60-130 g/㎡ |
| Glue amount | Max.150 |
| Volatile Matter | 5.5-7 |
|
|
| Brand Name: | Yaoyong |
| MOQ: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Wooden case packing |
| Payment Terms: | T/T, PayPal, Western Union |
Artificial Board Short Cycle Press Automatic Line
The short cycle press line works by pressing together multiple layers of material with a hot-press machine. The machine uses heat and pressure to bond the layers of material together, creating a strong and durable final product. The cycle time for this process is typically shorter than that of traditional long-cycle presses, which allows for higher production rates and lower costs.
The benefits of using a short cycle press line include increased productivity, reduced production costs, and improved quality control. Because the cycle time is shorter, more products can be produced in a shorter amount of time, leading to increased productivity. Additionally, because the process is more automated, there is less room for error, resulting in a higher-quality final product.
Specification
Product standard parameters requirements
● Plate Parameters
| Item | Parameters | Unit |
| Length×Width |
1220×2440(4×8), 1270×2470(4×8), 1220×2800(4×9), 1220×3050(4×10), 1525×2440(5×8), 1830×2440(6×8), 1525×2800(5×9), 1830×2800(6×9), 1525×3050(5×10) |
mm |
| Thickness | 8-30 | mm |
| Substrate height | 1300 | mm |
| Finished board height | 1300 | mm |
● Medium fiberboard (MDF), particleboard (PB), and OSB boards used for veneer should have the following technical properties:
| Density | 600-900kg/㎡ |
| Moisture content | ≦8 |
| Quality of the Surface | Dense surface layer, non-porous, fine sand surface |
| Thickness tolerance | Max.:±0.15mm |
| Density distribution | Evenly distributed |
● Requirements for Decorative paper (impregnated paper)
| Size | Must be more than 10mm larger than the original board size |
| Weight of the thick paper | 60-130 g/㎡ |
| Glue amount | Max.150 |
| Volatile Matter | 5.5-7 |
