YF-YLI Automatic Short-Cycle Press Line

The melamine lamination press machine pressure can from 1200T to 3200T (based on 1220*2440mm board).

The raw board size : 1220*2440 / 1220*2745 / 1220*3050 / 1830*2440 / 2100*2800 / 1830*3660 etc. other size can be customized.

The finished product can be processed to wardrobes,wallboard,flooring,furniture,etc.

1. Substrate section

● Plate feed power roller Qty: 2pcs

Applications: This station is used for substrate storage(preparation). Providing the plates for the pressing line.Fork slot width is 450mm

Parameters: Specification for the delivery plate: 1220×2440mm

Roller Specifications: 133mm

Conveying speed: 7m/min

Working Height: 200mm

Plate stack height: 1300mm

Maximum load: 3000kn

Motor Power: 0.75kw

● Substrate Lifting table Qty: 1 piece

Applications: This station is the substrate working station, which automatically rises to the pushing position, and the pusher pushes the substrate into the substrate duster. Each time a substrate is removed, the hydraulic lifting table automatically rises to the height of one substrate to prepare for the subsequent continuous pushing of the substrate.

Parameters: Specification for the delivery plate: 1220×2440mm

Roller Specifications: 133mm

Conveying speed: 7m/min

Working Height: 200mm

Plate stack height: 1300mm

Maximum load: 3000kg

Motor Power: 3kw

● Pad recovery machine Qty: 1 piece

Applications: When the boards on the board-feeding lifting table are used up, the backing boards on the lifting table are automatically transferred to the backing board recycling machine(And neatly positioned in the recycling machine)

Parameters: Specification for the delivery plate: 1220×2440mm

● Board hooking machine Qty: 1 piece

Applications: This equipment is a pneumatic hook plate structure, which separates the substrates from the substrate lifting platform and hooks them one by one into the substrate positioning platform through the dust collector.

Parameters: Specification for the delivery plate: 1220×2440mm

● Substrate dust machine Qty: 1 piece

Applications: This equipment includes upper and lower sets of power roller brushes. Before the substrate enters the dust machine, 2 sets of pneumatic pressure rollers at the entrance of the dust collector are lowered to fix the substrate so that the substrate enters the dust machine smoothly.

This equipment includes upper and lower sets of power roller brushes. Before the substrate enters the dust machine, 2 sets of pneumatic pressure rollers at the entrance of the dust collector are lowered to fix the substrate so that the substrate enters the dust machine smoothly.

Negative pressure vacuum cleaner prepared by the customers

Parameters: Specification for the delivery plate: 1220×2440mm

Roller Specifications: 133mm

Conveying speed: 25m/min

Motor Power: 2.75kw

Inspiratory flow: 3600m³/h

Air speed: 22m/s

● Raw Board centering positioning roller table Qty: 1 piece

Applications: This equipment is used for positioning the substrate in the center so that the transfer machine can accurately transfer the substrate to the feeding machine

Parameters: Specification for the delivery plate: 1220×2440mm

Conveying speed: 25m/min(Speed adjustable)

Motor Power: 0.75kw

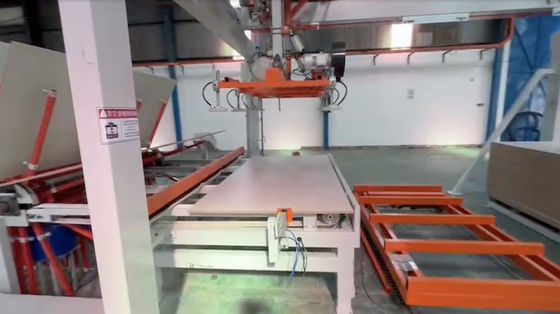

● Raw board lift transfer machine Qty: 1 piece

Applications: This equipment includes a vacuum suction cup trolley, which can stabilize the substrate from the positioning and centering roller table

Accurate suction rises, the sports car translates to the top of the feeding machine, the vacuum suction cup trolley descends and accurately places the substrate on the feeding machine belt.

Parameters: Specification for the delivery plate: 1220×2440mm

Conveying speed: 28m/min(Speed adjustable)

Maximum load: 60kg

Motor Power: 3-4kw

2. Paper layer machine Qty: 1 piece

Applications: Instead of manually completing the paving work of melamine paper.

Parameters: Specification for the delivery plate: 1220×2440mm

round trip speed: 100m/min(Speed adjustable)

Motor Power: 22kw (Servo Systems)

Features: Adopting servo system control, the paper paver runs smoothly and the positioning is accurate.

3. Electric control box (whole control)

Applications: For the control of all sections.

Features: Adopting servo system control, the paper paver runs smoothly and the positioning is accurate.

List of the main accessories
