1600t Short Cycle Ceramic Tile Hydraulic Hf Curved Plywood Bending Hot Press Machine

Name: 1600t Short Cycle Ceramic Tile Hydraulic Hf Curved Plywood Bending Hot Press Machine
Brand: Yaoyong
SKU: Yaoyong
Rating: 4.5 (158 reviews)

Brand Name:	Yaoyong
MOQ:	1 set
Price:	Negotiation
Packaging Details:	Wooden case packing
Payment Terms:	T/T, PayPal, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, China

Name:

YAL-ZA Mode Automatic Short-Cycle Press Line I Type Common Line(Sweep And Dust)-With Board Cooling Unit

Length×Width（mm）:

1220×2440（4×8）, 1270×2470（4×8）, 1220×2800（4×9）, 1220×3050（4×10）, 1525×2440（5×8）, 1830×2440（6×8）, 1525×2800（5×9）, 1830×2800（6×9）, 1525×3050（5×10）

Thickness（mm）:

8-30mm

Substrate Height（mm）:

1300mm

Finished Board Height:

1300mm

Density:

600-900kg/㎡

Moisture Content:

≦8

Quality Of The Surface:

Dense Surface Layer, Non-porous, Fine Sand Surface

Thickness Tolerance:

Max.:±0.15mm

Density Distribution:

Evenly Distributed

Size:

Must Be More Than 10mm Larger Than The Original Board Size

Weight Of The Thick Paper:

60-130 G/㎡

Glue Amount:

Max.150

Volatile Matter:

5.5-7

Supply Ability:

10000pcs/month

Highlight:

Short Cycle Hot Press Machine

1600t Hydraulic Hot Press Machine

Plywood Bending Hot Press Machine

Product Description

YAL-ZA Mode Automatic Short-Cycle Press Line I Type Common Line(Sweep And Dust)-With Board Cooling Unit

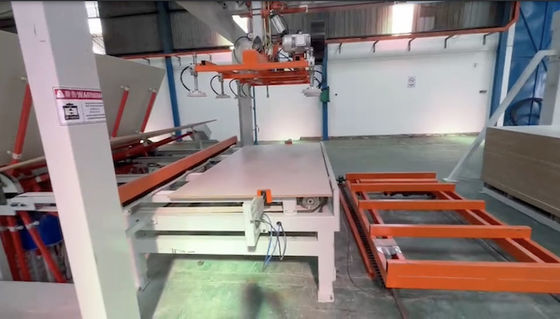

YAL-ZA automatic production line is a fully automatic production line with a full-cycle design for melamine veneer. It is capable of automatically applying and pressing veneers onto boards, trimming edges, cleaning, drying, and stacking boards. By shifting and replacing different patterned steel templates, it can quickly produce high-end wood panels with glossy, matte, marble, and wood grain finishes.

Description:

Size of the Line: 29309*5925*6100mm

Voltage: 380V±10% customized

Ambient Temperature: -20℃~+50℃

Raw Board: Particle Boards, MDF Boards and HDF Boards

Certification: ISO9001, CE

Size of the Melamine Board can be produced: 4'×8' ; 5'×8' ; 6'×8' ; 4'×9' ; 5'×9' ; 6'×9' ; 4'×10' ; 5'×10' , etc.

Common Pressed plate specification: 48ft(Length2440xWidth1220xHeight8-30mm)

Production Capacity: 100pcs boards/hour
