Short Cycle Lamination Press

4x8 MDF Boards Short Cycle Press Machine For Machinery Industry

All Category

Panel Wrapping Paper

Mr. He

70317479@qq.com

+86-17701504488

lisa-shi007

Contact Now

4x8 MDF Boards Short Cycle Press Machine For Machinery Industry

Brand Name:	Yaoyong
MOQ:	1 set
Price:	Negotiation
Packaging Details:	Wooden case packing
Payment Terms:	T/T, PayPal, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, China

Name:

YAL-ZL U Type Sideshift -Front-end Dust Removal-Board Cooling, Dust Removing

Length×Width（mm）:

1220×2440（4×8）, 1270×2470（4×8）, 1220×2800（4×9）, 1220×3050（4×10）, 1525×2440（5×8）, 1830×2440（6×8）, 1525×2800（5×9）, 1830×2800（6×9）, 1525×3050（5×10）

Thickness（mm）:

8-30mm

Substrate Height（mm）:

1300mm

Finished Board Height:

1300mm

Density:

600-900kg/㎡

Moisture Content:

≦8

Quality Of The Surface:

Dense Surface Layer, Non-porous, Fine Sand Surface

Thickness Tolerance:

Max.:±0.15mm

Density Distribution:

Evenly Distributed

Size:

Must Be More Than 10mm Larger Than The Original Board Size

Weight Of The Thick Paper:

60-130 G/㎡

Glue Amount:

Max.150

Volatile Matter:

5.5-7

Supply Ability:

10000pcs/month

Highlight:

4x8 Short Cycle Press

Short Cycle Press Machine

MDF Boards Short Cycle Press

Product Description

YAL-ZL Mode L Type Sideshift Line

The production range includes complete lines for any type of lamination with thermo-fused resins demanded in the market: for furniture and flooring industry with melamine impregnated papers and for industrial purposes with phenolic impregnated papers and net print.
The wide range of machines offered by Pagnoni can satisfy all customers requirement: from the simplest and more essential lines, with manual paper composition, to the most sophisticated and automated ones, with automatic paper storage and selection for extreme customised production.
The design and construction of these machines, utilizing the most advanced technologies and the most sophisticated components, the construction stoutness and the “easy handling”, are the key aspects that have always distinguished Pagnoni production.

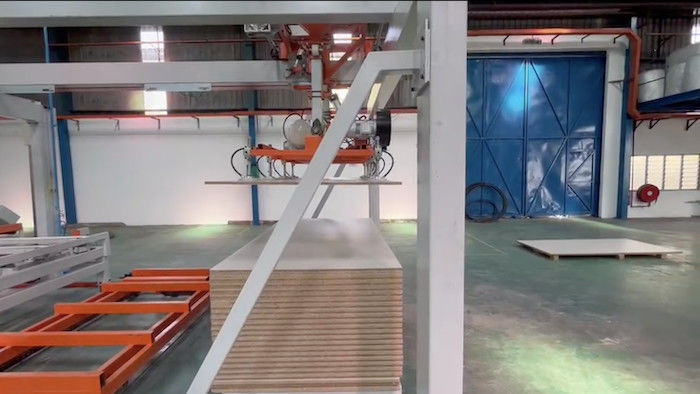

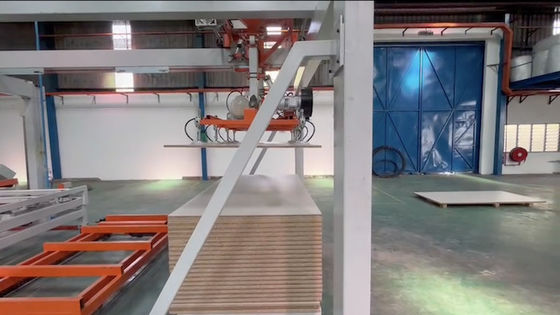

YAL-ZU automatic production line is a fully automatic production line with a full-cycle design for melamine veneer. It shares the same functionalities as YAL-ZA and YAL-ZL models, but the difference lies in its U-shaped layout. By shifting the steel templates towards the back and adapting to the flexible layout of the customer's factory, it saves floor space while enabling the rapid production of high-end wood panels with glossy, matte, marble, and wood grain finishes.

Description:

Size of the Line: 17230*10270*5900mm

Voltage: 380V±10% customized

Ambient Temperature: -20℃~+50℃

Raw Board: Particle Boards, MDF Boards and HDF Boards

Certification: ISO9001, CE

Size of the Melamine Board can be produced: 4'×8' ; 5'×8' ; 6'×8' ; 4'×9' ; 5'×9' ; 6'×9' ; 4'×10' ; 5'×10' , etc.

Common Pressed plate specification: 48ft(Length2440xWidth1220xHeight8-30mm)

Production Capacity: 100pcs boards/hour
