| Brand Name: | Yaoyong |
| MOQ: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Wooden case packing |
| Payment Terms: | T/T, PayPal, Western Union |
YL Series Short Cycle Press Automatic Line For Artificial Boards L Type Automatic Line-YLL
Description
YL series short cycle press production line for artificial board
Widely used in short-cycle artificial board pressing production lines, suitable for particleboard, medium-density fiberboard, and melamine impregnated paper.
Evenly cool the board to reduce deformation caused by temperature difference, thereby shortening the delivery cycle.
After adding a printer, it can be used as a finished board printing line.
Other customized functions can also be added, such as board weighing, sub-packaging, full packaging, etc.
The fast short cycle laminating hot press line is for double-sided lamination of MDF-boards and particleboard with melamine resin impregnated papers n a short cycle process.
[Short Cycle Melamine Lamination Hot Press Machine/Short Cycle Hot Press Line /Melamine Short Cycle Hot Press/Short Cycle Lamination Press Line]
Features:
It is suitable for fast laminating. quickly opening, closing, quickly pressurizing and short auxiliary time.
Stable high-speed operation, Max capacity: 120 sheets /hour
Only need one person for operating the full production line.
Specification
| Floor area (length) | About 14m (default 32 drying board lines) |
| Floor area (width) | About 7m |
| Total floor area | About 68m2 |
| Voltage requirements | Default 380v+15% 50hz |
| Building height requirements | ≥6 meters |
| Gas source requirements | 0.6-0.8 Mpa pressure flow ≥200L/min |
| Gas source gas consumption |
Peak 400L/min
|
| Installed power | 15 KW |
| Finished board production capacity | 80 sheets/hour |
| Applicable board specifications | 4X8, 4X9, 4X10 (other sizes can be customized) |
| Number of loading stations | Standard 1, can be customized to increase |
| Number of unloading stations | Standard 1, can be customized to increase |
| Substrate thickness | 6-35mm |
Applications

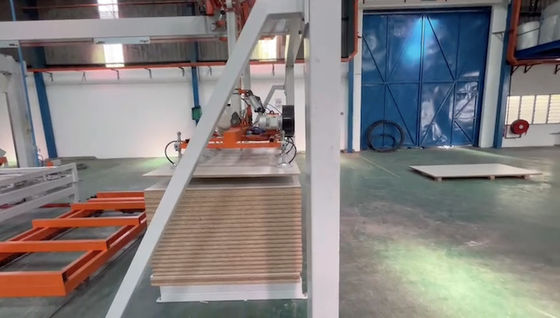

1. Complete board loading device, customers only need to transport the board to the designated location to automatically start operation, no manual operation is required. 2. The board loading and unloading are automatically sucked out by suction cups, which prevents the dangers caused by manual unloading and secondary damage to the board surface, effectively protects the surface from scratches, and reduces the scrap rate.
3. A printer can be installed in the conveyor rack.
4. A fan is installed under the drying line to accelerate the cooling of the board and blow away the floating dust.
5. The board is brushed again after it comes out of the drying line to ensure a clean surface.
6. Automatic stacking is fast and efficient, and can be stacked at multiple stations.
Competitive Advantage
1. The automatic line requires less manpower, is more intelligent and automated.
2. The product functions are mature and the experience is rich.
3. The price is economical and the quality is guaranteed.
4. It has high-tech patents: customized servo system drive, electrostatic adsorption, integrated inlet and outlet plate mechanism and a series of technologies, full-size CNC machining of presses, synchronous lever system, etc.
5. The line can be disassembled and transported conveniently.
6. It can be customized according to customers to adapt to different factory areas.
7. Remotely modify the control program, quickly solve problems, and worry-free after-sales.
|
|
