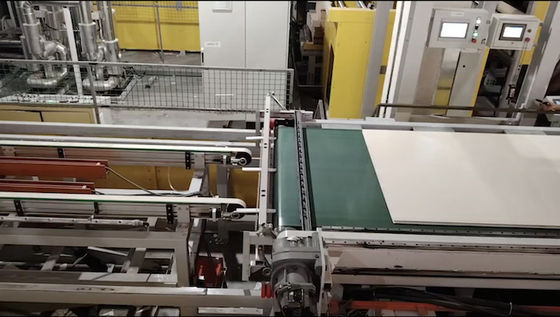

YAL-ZA Mode Automatic Short-Cycle Press Line I Type Common Line(Sweep And Dust)-With Board Cooling Unit
Short cycle press lines to melamine lamination both side. melaminico decorativo a dos caras.
• Automatic feeding panlels at the beginning of the line.
• Pressed.
• Trimming. .
• Cooled.
• Final stacking.
YAL-ZA automatic production line is a fully automatic production line with a full-cycle design for melamine veneer. It is capable of automatically applying and pressing veneers onto boards, trimming edges, cleaning, drying, and stacking boards. By shifting and replacing different patterned steel templates, it can quickly produce high-end wood panels with glossy, matte, marble, and wood grain finishes.
Description:
Size of the Line: 29309*5925*6100mm
Voltage: 380V±10% customized
Ambient Temperature: -20℃~+50℃
Raw Board: Particle Boards, MDF Boards and HDF Boards
Certification: ISO9001, CE
Size of the Melamine Board can be produced: 4'×8' ; 5'×8' ; 6'×8' ; 4'×9' ; 5'×9' ; 6'×9' ; 4'×10' ; 5'×10' , etc.
Common Pressed plate specification: 48ft(Length2440xWidth1220xHeight8-30mm)
Production Capacity: 100pcs boards/hour
|
|
