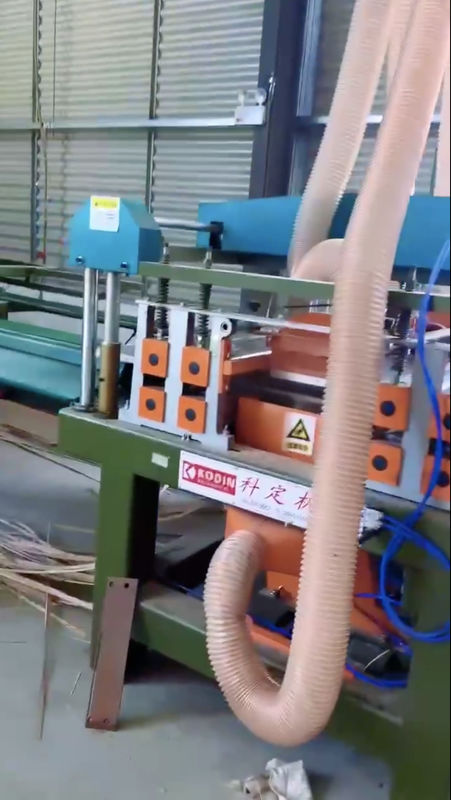

Edge Trimmers Cutting Edge Saw Double Edge Trimming Machine
  • name

Edge Trimmers Cutting Edge Saw Double Edge Trimming Machine

Brand Name: Yaoyong
MOQ: 1 set
Price: Negotiation
Packaging Details: Wooden case packing
Payment Terms: T/T, PayPal, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Changzhou, China
Name:
YFJL Material Laminating Automatic Line (YF Series) Gluing Line (glue Coating Line) ---- L Type
Floor Area (length):
About 17.3m
Floor Area (width):
About 4.8m
Total Floor Area:
83m2
Voltage Requirements:
Default 380v+15% 50hz
Building Height Requirements:
≥6 Meters
Gas Source Requirements:
0.6-0.8 Mpa Pressure Flow ≥200L/min
Gas Source Gas Consumption:
Peak 400L/min
Finished Board Production Capacity:
60-80 Sheets/hour
Applicable Board Specifications:
4X8, 4X9, 4X10 (other Sizes Can Be Customized)
Supply Ability:
10000pcs/month
Highlight:

Edge Trimmers

,

Cutting Edge Saw

,

double edge trimming machine

Product Description

YFJL Material laminating automatic line (YF series) Gluing line (glue coating line) ---- L type

Description



A fully automatic veneer gluing production line, comprising an adsorption conveying mechanism, a gluing mechanism, and a material receiving mechanism, wherein the adsorption conveying mechanism is provided with a gluing mechanism on one side, and a material receiving mechanism is provided on the other side

Specification





Floor area (length) About 17.3m
Floor area (width) About 4.8m
Total floor area About 83m2
Voltage requirements Default 380v+15% 50hz
Building height requirements ≥6m
Air source requirements 0.6-0.8 Mpa pressure flow ≥200L/min
Air source consumption Peak 400L/min
Sawing efficiency 60-80 sheets/hour
Applicable board specifications 4X8, 4X9, 4X10 (other sizes can be customized)





Applications:
Fully automatic wood board gluing, laminating and pressing production line, density board, particle board and foam board veneer production line, high-gloss board equipment. The home is a veneer equipment that uses PUR hot-melt glue to cover and laminate. It uses high-gloss acrylic, fireproof board and PVC board to laminate various MDF boards, particle boards, foam materials and honeycomb door core boards. This flat automatic laminating and veneer machine has the functions of automatic gluing, baking glue, veneer, cold pressing, hot pressing and cutting continuous operations. It has a high degree of automation and good veneer effect. The surface of the finished product is wrinkle-free and bubble-free, and no other equipment is needed to pressurize it. It is a veneer gypsum board and decorative material company board decorative veneer film equipment. Wood grain paper stickers are used to laminate PVC film, flower paper, corrugated paper, aluminum foil and other decorative materials on flat boards. The machine consists of a rotating feed conveyor rack, a dust sweeper, a single-sided glue coating machine, an intermediate conveyor rack, a single-sided veneer machine and a discharge conveyor rack. It is composed of three cold pressings and two hot pressing leveling. It is a decorative veneer equipment for various flat board materials.

Competitive Advantage:
1. Advanced design, suitable for various specifications of plates.
2. Flexible structure, large adjustable range, can adapt to complex factory environment.
3. High degree of full automation, can be in production after the first calibration.
4. Intelligent docking with the main system, matching a variety of application efficiency
5. The control system uses Omron PLC and servo drive motor to complete the function; the human-computer interaction interface is simple, convenient and easy to operate; it has function buttons such as start, pause and emergency stop; it has automatic counting and storage functions. Reserve external system interface.
