Plywood Edge Trimming Sizing Cutting Saw Machine Wood Saw Board Edger

Name: Plywood Edge Trimming Sizing Cutting Saw Machine Wood Saw Board Edger
Brand: Yaoyong
SKU: Yaoyong
Rating: 4.9 (164 reviews)

Brand Name:	Yaoyong
MOQ:	1 set
Price:	Negotiation
Packaging Details:	Wooden case packing
Payment Terms:	T/T, PayPal, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Changzhou, China

Name:

YFQL Automatic Sheet Laminating Line (YF Series) Cutting And Squaring Line CNC Edge Sawing Machine

Floor Area (length):

About 24m

Floor Area (width):

About 6m

Total Floor Area:

144m2

Voltage Requirements:

Default 380v+15% 50hz

Building Height Requirements:

≥6 Meters

Gas Source Requirements:

0.6-0.8 Mpa Pressure Flow ≥200L/min

Gas Source Gas Consumption:

Peak 400L/min

Finished Board Production Capacity:

60-80 Sheets/hour

Applicable Board Specifications:

4X8, 4X9, 4X10 (other Sizes Can Be Customized)

Supply Ability:

10000pcs/month

Highlight:

Board Edger

Plywood Edge Trimming Cutting Saw

Sizing Cutting Saw Machine

Product Description

Automatic sheet laminating line (YF series) Cutting and squaring line --- Type I -- YFQI

Description

The fully automatic edge trimming saw is a type of supporting equipment for the production of panels. It is mainly used for sawing the edges of glass magnesium boards, composite insulation boards, foam boards, and plywood.

Specification

Floor area (length)	About 24m
Floor area (width)	About 6m
Total floor area	144m2
Voltage requirements	Default 380v+15% 50hz
Building height requirements	≥6m
Air source requirements	0.6-0.8 Mpa pressure flow ≥200L/min
Air source consumption	Peak 400L/min
Sawing efficiency	60-80 sheets/hour
Applicable board specifications	4X8, 4X9, 4X10 (other sizes can be customized)

Applications:

CNC edge sawing machine: This automatic saw consists of infrared positioning part, pre-installed board equipment, longitudinal saw trolley, longitudinal saw trolley clamping structure, longitudinal saw trolley chain transmission equipment, longitudinal saw head, saw frame, saw trolley, cross-cutting saw head, cross-cutting trolley chain transmission equipment, automatic stacking device, etc.

Competitive Advantage:

1. The edge sawing machine has advanced design and is suitable for various specifications of plates.

2. The structure is flexible and the adjustable range is large, which can adapt to the complex factory environment.

3. The degree of full automation is high, and production can be carried out after the first calibration.

4. It can be intelligently connected with the main system to match a variety of application efficiencies

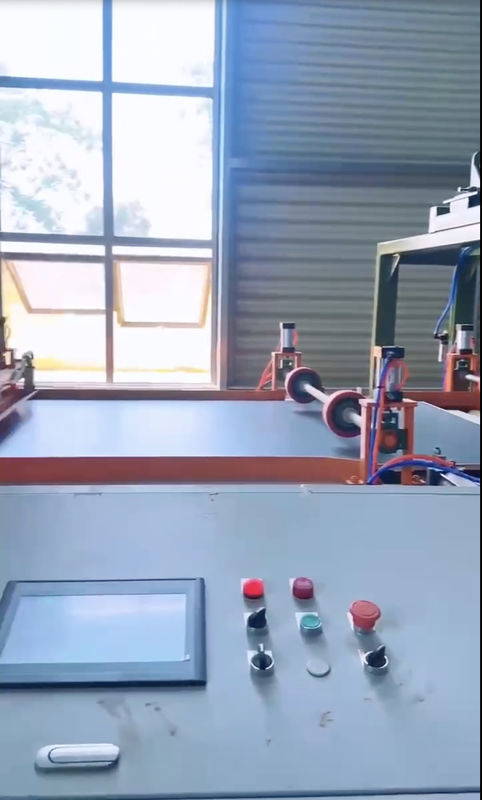

5. The control system uses Omron PLC and servo drive motor to complete the function; the human-computer interaction interface is simple, convenient and easy to operate; it has function buttons such as start, pause and emergency stop; it has automatic counting and storage functions. Reserve external system interface.

6. The main structure of the edge saw is solid, durable and stable.
