| Brand Name: | Yaoyong |
| MOQ: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Wooden case packing |
| Payment Terms: | T/T, PayPal, Western Union |

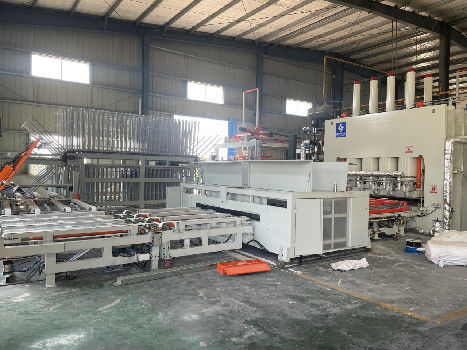

Artificial Board Short Cycle Press Automatic Line
Traditional double side short cycle hot press is widely used for MDF/ Particle board melamine paper laminated, it is the important part in furniture board, floor board, cabinet board producing. The short cycle hot press can be equipped with several kinds of stainless steel plate for high-glossy, matte, S.F., embossing pattern's pressing lamination. Regarding laminated flooring press machine, pressure range: 1400T-3200T, we can design working size and specification according to your different board size. The short cycle hot press is famous for its fast pressing speed, high efficiency, and labor saving. Standard double side short cycle hot press is equipped auto feeder conveyor, which is convenient for worker's operating.
Specification
Product standard parameters requirements
● Plate Parameters
| Item | Parameters | Unit |
| Length×Width |
1220×2440(4×8), 1270×2470(4×8), 1220×2800(4×9), 1220×3050(4×10), 1525×2440(5×8), 1830×2440(6×8), 1525×2800(5×9), 1830×2800(6×9), 1525×3050(5×10) |
mm |
| Thickness | 8-30 | mm |
| Substrate height | 1300 | mm |
| Finished board height | 1300 | mm |
● Medium fiberboard (MDF), particleboard (PB), and OSB boards used for veneer should have the following technical properties:
| Density | 600-900kg/㎡ |
| Moisture content | ≦8 |
| Quality of the Surface | Dense surface layer, non-porous, fine sand surface |
| Thickness tolerance | Max.:±0.15mm |
| Density distribution | Evenly distributed |
● Requirements for Decorative paper (impregnated paper)
| Size | Must be more than 10mm larger than the original board size |
| Weight of the thick paper | 60-130 g/㎡ |
| Glue amount | Max.150 |
| Volatile Matter | 5.5-7 |
|
|
| Brand Name: | Yaoyong |
| MOQ: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Wooden case packing |
| Payment Terms: | T/T, PayPal, Western Union |
Artificial Board Short Cycle Press Automatic Line
Traditional double side short cycle hot press is widely used for MDF/ Particle board melamine paper laminated, it is the important part in furniture board, floor board, cabinet board producing. The short cycle hot press can be equipped with several kinds of stainless steel plate for high-glossy, matte, S.F., embossing pattern's pressing lamination. Regarding laminated flooring press machine, pressure range: 1400T-3200T, we can design working size and specification according to your different board size. The short cycle hot press is famous for its fast pressing speed, high efficiency, and labor saving. Standard double side short cycle hot press is equipped auto feeder conveyor, which is convenient for worker's operating.
Specification
Product standard parameters requirements
● Plate Parameters
| Item | Parameters | Unit |
| Length×Width |
1220×2440(4×8), 1270×2470(4×8), 1220×2800(4×9), 1220×3050(4×10), 1525×2440(5×8), 1830×2440(6×8), 1525×2800(5×9), 1830×2800(6×9), 1525×3050(5×10) |
mm |
| Thickness | 8-30 | mm |
| Substrate height | 1300 | mm |
| Finished board height | 1300 | mm |
● Medium fiberboard (MDF), particleboard (PB), and OSB boards used for veneer should have the following technical properties:
| Density | 600-900kg/㎡ |
| Moisture content | ≦8 |
| Quality of the Surface | Dense surface layer, non-porous, fine sand surface |
| Thickness tolerance | Max.:±0.15mm |
| Density distribution | Evenly distributed |
● Requirements for Decorative paper (impregnated paper)
| Size | Must be more than 10mm larger than the original board size |
| Weight of the thick paper | 60-130 g/㎡ |
| Glue amount | Max.150 |
| Volatile Matter | 5.5-7 |
