YZ Series Fully Automatic Paper Laying Machine YZD-Horizontal Press---YZDZ
Description
The automatic paper laying machine is the pre-process link of laminating boards. It lays a piece of paper on each board and is a component of a complete set of large-scale automatic unloading and pressing system. It is also a machine that can greatly reduce labor costs.
Specification
| Floor area (length) | About 6m |
| Floor area (width) | About 2.3m |
| Total floor area | 14m2 |
| Voltage requirements | Default 380v+15% 50hz |
| Plant height requirements | ≥6m |
| Air source requirements | 0.6-0.8 Mpa pressure flow ≥200L/min |
| Air source consumption | Peak 400L/min |
| Number of layers of paper laying rack | Single layer/double layer |
| Installed power | About 15KW |
| Paper laying efficiency | 160 sheets/hour |
| Applicable board specifications | 4X8, 4X9, 4X10 (other sizes can be customized) |
Applications

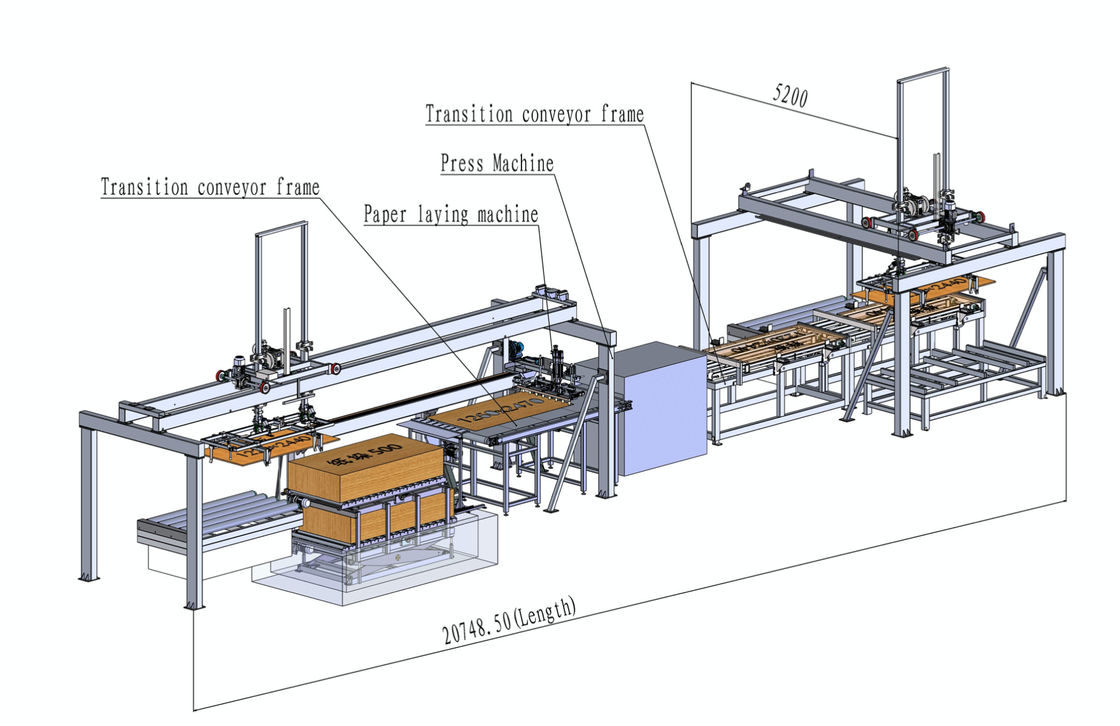

The main body of the paper laying machine consists of a main frame, a paper supply mechanism, a paper pulling mechanism, a paper feeding mechanism, etc.; the paper laying size range is wide (length 800-3100mm, width 400-1600mm), and it can be customized; it has a lifting mechanism to meet the application of paper laying in a large height range; the material is discharged in the width direction.
After the paper laying machine completes the stacking and laying of paper, the finished product is sent to the next station by the conveyor rack or grabbed by the board loading trolley and sent to the board feeding trolley.
After the paper laying mechanism of the paper laying machine completes the laying of the last layer of paper, it is lowered to the bottom of the machine to avoid contact when hoisting or forking out the goods.
Competitive Advantage
1. The paper laying machine has advanced design and is suitable for various specifications of boards.
2. The structure is flexible and the adjustable range is large, which can adapt to the complex factory environment.
3. The paper laying accuracy is high, and the error range is within XXmm.
4. Different patterned papers can be flexibly switched as needed, so that the machine can be changed without stopping.
5. The degree of full automation is high, and production can be continued after the first calibration.
6. It can be intelligently connected with the main system to match a variety of application efficiencies
7. It is suitable for paper rolls of different widths, and the width of the paper roll loading mechanism is adjustable; the control system uses Omron PLC and servo drive motor to complete the function; the human-computer interaction interface is simple, convenient and easy to operate; it has function buttons such as start, pause and emergency stop; it has automatic counting and storage functions. Reserve external system interface.
|
|
